应用
电气电子设备
办公自动化设备
LED驱动器，电源等
技术参数
| 额定电压 | 120/250VAC |
| 工作频率 | 50/60Hz |
| 额定电流 | 1A~10A |
| 耐压试验：（一分钟） | Line to Line1450VDC |
| Line to Ground 2000VAC | |
| 气候类别 | HPF25/085/21 |

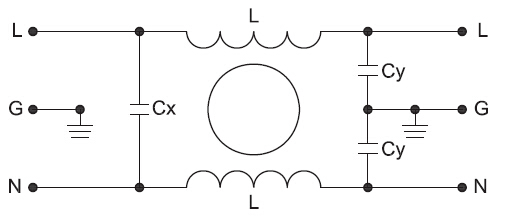

电原理图
| 型号 | 额定电流 (A) | 额定电压 (V) | 漏电流 (mA) |
| TS2000-1-01 | 1 | 120/250 | 0.5 |
| TS2000-3-01 | 3 | 120/250 | 0.5 |
| TS2000-6-01 | 6 | 120/250 | 0.5 |
| TS2000-10-01 | 10 | 120/250 | 0.5 |
| TS2000-1-03 | 1 | 120/250 | 0.5 |
| TS2000-3-03 | 3 | 120/250 | 0.5 |
| TS2000-6-03 | 6 | 120/250 | 0.5 |
| TS2000-10-03 | 10 | 120/250 | 0.5 |
| TS2001-1-01 | 1 | 120/250 | 0.5 |
| TS2001-3-01 | 3 | 120/250 | 0.5 |
| TS2001-6-01 | 6 | 120/250 | 0.5 |
| TS2001-10-01 | 10 | 120/250 | 0.5 |
| TS2002-1-01 | 1 | 120/250 | 0.5 |
| TS2002-3-01 | 3 | 120/250 | 0.5 |
| TS2002-6-01 | 6 | 120/250 | 0.5 |
| TS2002-10-01 | 10 | 120/250 | 0.5 |
